ZEISS Tripod MAX DUTY V

Beschreibung

The MAX-DUTY V includes Ballhead V-60 (Versatile), having 115 degrees of adjustment.
This provides a greater amount of tilt angle adjustments over multiple compound directions.

Exceptional Stability

Optimized 44 mm carbon-fiber leg diameter (36/40/44 mm)
Large, thread-in rubber feet for stay-in-place footing
Multi-angle leg positions consisting of 24, 55, and 85 degrees
Multiple adjustments for hassle-free stability

Fast & Easy Setup

Inverted 3-section leg design for ultimate compactness
Single-point leg adjustments with extended Twist-Locks
Modular, open apex system for maximum versatility
Removable through-the-center column for easy height adjustments
Easy-press leg adjustment mechanism

Robust Design

Machined aluminum frame and joints
Black, anodized finish
10-layer, matrix-pattern, heavy-duty carbon fiber legs
Laboratory and field tested via thousands of cycles and various extreme environmental conditions

Secure Connection

Arca-Swiss top mounting system
3/8” Thread-on head
1/4-20 extended balance plate with rubberized anti-slip strips
Strong, adjustable, ergo-friendly clamps and knobs

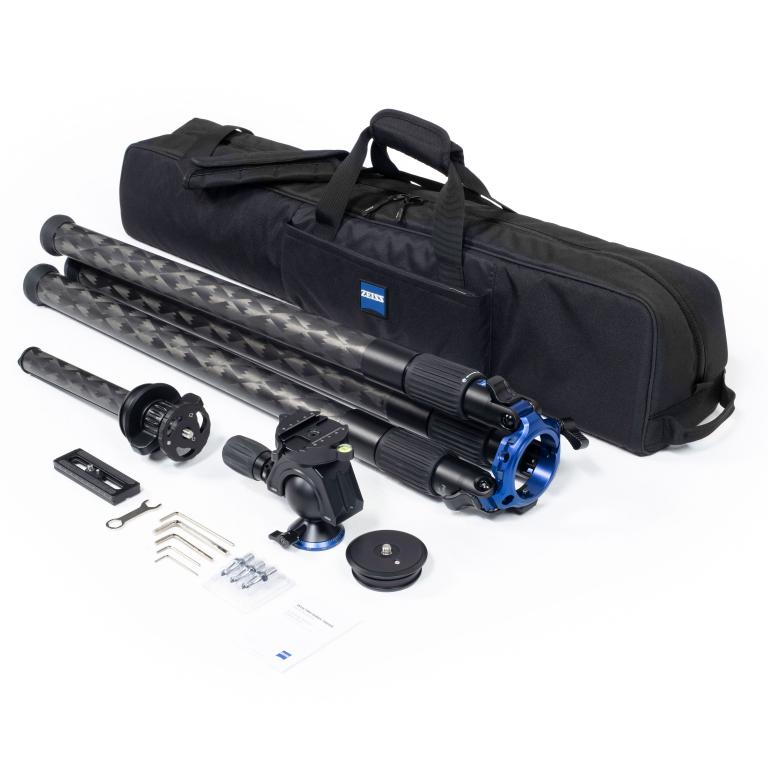

What’s included in the kit?

MAX-DUTY Tripod
Ballhead V-60 or Ballhead L-55
Removable Center Column
Flat Plate Adapter with 3/8” Stud
1/4-20 Extended Adapter Plate
Tripod Bag with Shoulder Strap
Tool Kit
Spiked Feet
Quick Guide



























• Head Type	Ballhead V-60
  Weight (No Head, No Center Column)	4.0 kg | 9.0 lbs
  Weight (With Head, No Center Column)	5.2 kg | 11.4 lbs
  Weight (With Head, With Center Column)	5.5 kg | 12.1 lbs
  Extended Height (No Head)	173 cm | 67.9″
  Extended Height (With Head)	187 cm | 71.5″
  Compressed Length (With Head, With Center Column)	101 cm | 39.8″
  Maximum Load	30 kg | 66 lbs
  Leg Tube Diameters	44 mm | 40 mm | 36 mm
  Leg Angles	24° | 55° | 85°
  Leg Sections	3
  Locking Mechanism	Twist Lock
  Center Column	Extendable and Detachable
